10" machine de moulage par injection de chaussure de l'écran tactile 8.5kW

Name: 10" machine de moulage par injection de chaussure de l'écran tactile 8.5kW
Brand: YONGJIA
SKU: chaussure faisant la machine
Rating: 4.7 (113 reviews)

Détails sur le produit:

Lieu d'origine:	La Chine
Nom de marque:	YONGJIA
Certification:	ce
Numéro de modèle:	chaussure faisant la machine

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble/ensembles
Prix:	Negotiable
Détails d'emballage:	caisse en bois pour la machine molle de moulage par injection de mousse d'unité centrale de polyurét
Délai de livraison:	45-60 jours
Conditions de paiement:	L/C, D/A, D/P, T/T, Western Union,
Capacité d'approvisionnement:	2 ensembles/ensembles par Machine molle de moulage par injection de mousse d'unité centrale de pol

Contact

Description de produit détaillée

Traitement du type:	Machine à mousse	condition:	nouveau
Type de produit:	Filet de mousse	Type de machine:	machine d'injection
Tension:	220v 380v	Puissance (kilowatts):	168kW
Poids (kilogrammes):	2000 KILOGRAMMES	Garantie:	1 an
Service après-vente fourni:	Support technique, installation visuels de champ, commissionnant et s'exerçant, maintenance sur le t	Arguments de vente principaux:	Automatique
Après service de garantie:	Support technique visuel, appui en ligne, maintenance sur le terrain de pièces de rechange, et servi	Emplacement de service local:	La Turquie, Pakistan, Inde
Emplacement de salle d'exposition:	La Turquie, Pakistan, Inde	Industries applicables:	Usine
Type de vente:	Produit chaud 2019	Rapport des essais de machines:	Non disponible
Sortant-inspection visuelle:	Fourni	Garantie des composants de noyau:	1 an
Composants de noyau:	Incidence, moteur, pompe, PLC, récipient à pression	Catégorie automatique:	Automatique
Nom de produit:	chaussure complètement automatique faisant la machine	Mode fonctionnant:	Automatique

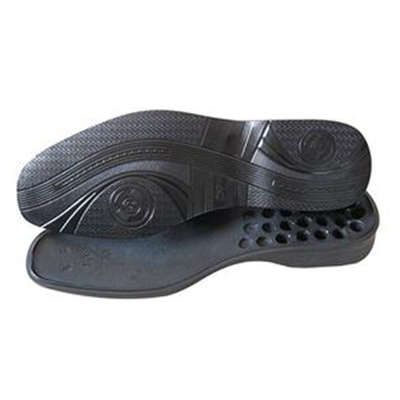

Type:	Chaîne de production	Application:	chaussures/protection unique/semelle intérieure/chaussures
Advantage1:	Produit breveté	Advantage2:	Rendement élevé
Advantage3:	précis	Advantage4:	Durable
Longueur de la ligne d'anneau:	19000	Port:	Changhaï pour la chaussure complètement automatique faisant la machine
Surligner:	machine de bâti unique de la chaussure 8.5kW , machine de moulage par injection de la chaussure 28kw , machine de moulage par injection de la chaussure 8.5kW

Automatic Polyurethane PU Pouring Shoe Sole Making Machine

Introduction:

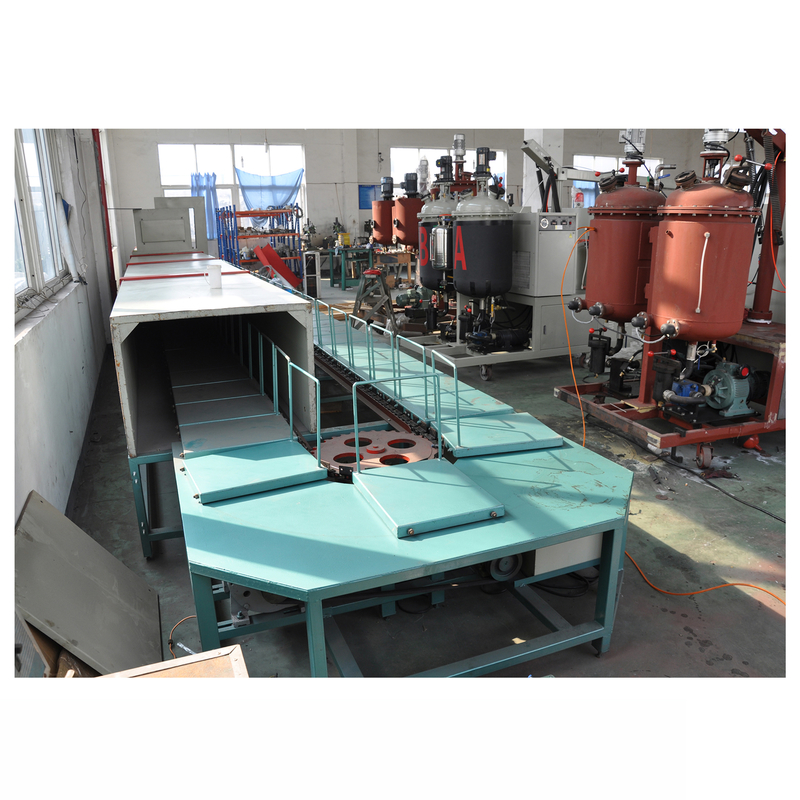

Annular automatic insole and sole production line is an ideal equipment based on our company's independent research and development, which can save labor cost, improve production efficiency and automatic degree, also possess the characteristics of stable performance, accurate metering, high precision positioning, automatic position identifying.

Bucket	Metering Pump	Metering Pump Motor Power	Spit Out Quality	Total Power
A.120L	JR9	0.75kw	10-40g/s	8.5kw
B.120L	JR3.6	0.55kw
S.2L	JR0.3	0.2kw

Technical parameters of pu shoe production line:

1. Annular line length 19000, drive motor power 3 kw/GP, frequency control;
2. Station 60;
3. Oven length 14000, heating power 28kw, inner motor power 7 * 1.5 kw;
4. Mold opening and clamping adopt servo motor 1.5kw,, reducer PF - 115-32;
5. The panasonic PLC control, 10 inch touch screen;
6. Manufacturing process: injection mold release - hand set pieces - clamping - open die - casting mould - the - - cure - lock -molding - artificial pick-up - clean up mold

Host equipment of pu shoe production line:

Product component:

This equipment includes one pu foaming machine(can be low or high pressure foam machine) and one production line.It can be customized according to the products which the users need to produce.

Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

This is one set of molded pu foaming production line, it can produce different types of sponges products. Its sponges
products(high-resilient and viscoelastic) are mainly for high and medium level markets. For example, memory pillow, mattress, bus and car seat mat, bicycle and motorcycle seat mat, assembly chair, office chair, sofa and other one-time molded sponges.

Application:

Packing & Delivery:

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).
